C Series -- Outdoor Fixed Screen Led Glass Mesh Screen P15.625 Grille Screen Outdoor High Brightness Transparent Led Screen
(1) Description of Outdoor Fixed Screen Led Glass Mesh Screen LED Display C1531:
1. High brightness: C1531 Mesh screen brightness is up to 12000 nits, Standard configuration is 8000 nits and it can reach up to 12000 nits with high brightness level LED lamp such DIP 349.
2. Super light and thin box, easy to transport, install and maintain
3. Low power consumption, low heat, energy saving and environmental protection
4. Stable signal and power supply, safe and reliable operation
5. High efficiency and stability, high reliability, long service life
6.Supports right-angle or curved customization to meet the needs of outdoor naked-eye 3D large screens
(2) Quick Detail:
Pixel Pitch:15.625x31.25mm(H*V)
Cabinet size:1000(W)×1000(H)×85(D)mm
Cabinet material: aluminum
Cabinet weight:19.5kg
Module size:500(W)×250(H)×25(D)mm
Refresh rate: 3840Hz
Brightness:12000cd/㎡
Maintenance type:Front/Rear maintenance
(3) Specifications:
| Module Parameter |
| 1 | Item Name | C1531 |
| 2 | Pixel Pitch | 15.6x31.25mm(H*V) |
| 3 | Pixel density | 2048dots/㎡ |
| 4 | LED configuration | DIP349 |
| 5 | Module size | 500(W)×250(H)×25(D)mm |
| 6 | Module resolution | 32(W)x8(H) |
| 7 | Scanning Mode | Static |
| Cabinet Parameter |
| 1 | Cabinet resolution | 64(W)x32(H) |
| 2 | Cabinet size | 1000(W)×1000(H)×85(D)mm |
| 3 | Cabinet materials | Aluminum |
| 4 | Cabinet weight | 19.5kg |
| 5 | Brightness | 12000cd/㎡ |
| 6 | Viewing angle | 160°(horz.), 160° (vert.) |
| 7 | Optimal View Distance | 15m |
| 8 | Gray scale | 14bit |
| 9 | Max Power Consumption | 360W/㎡ |
| 10 | Avg Power Consumption | 100W/㎡ |
| 11 | Work Voltage | AV190-260V |
| 12 | Frame Frequency | 60Hz |
| 13 | Refresh rate | 3840HZ |
| 14 | Operation System | Win7&XP |
| 15 | Control Mode | Synchronization with PC |
| 16 | Operating Temperature | ( -40℃～+50℃ ) |
| 17 | IP Rating(Front/Rear) | IP65/IP65 |
| 18 | 90° right Angle splicing function | To do naked eye 3D display |
| 19 | Installation / maintenance type | Front / Back installation
Front / Back maintenance |
| 20 | Life Span | 100,000Hours |
(4) Notes:
1. Be sure to connect the wires correctly, do not connect the wrong wires.
2. Do not expose the copper wire outside the power terminal hole to avoid short circuit or electric shock.
3. During the rainy season, the LED screen display is guaranteed to be used at least once a week, and it is lit for at least 2 hours each time.
4. The use of outdoor LED displays is complex, and it is inevitable that there will be water seepage in the cabinet. Usually, it is necessary to regularly check whether the waterproof rubber ring of the cabinet is aging, deformed or incomplete; whether the screws or locks of the sealing box are easy to loosen and the pressure is not enough, which affects the use.
(5) Application:

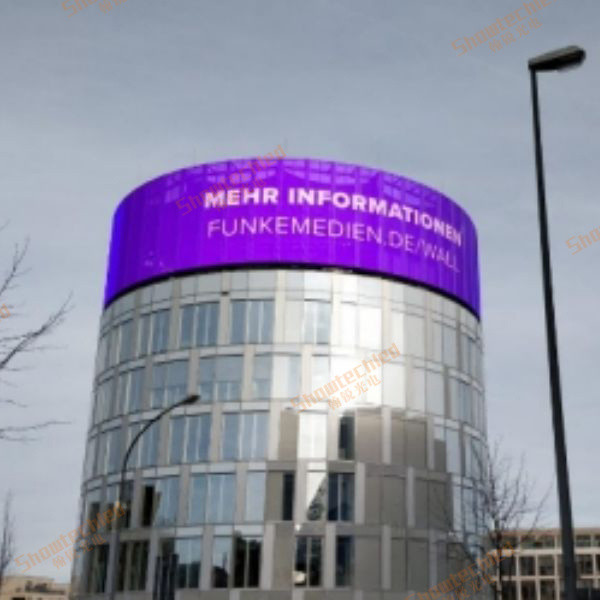

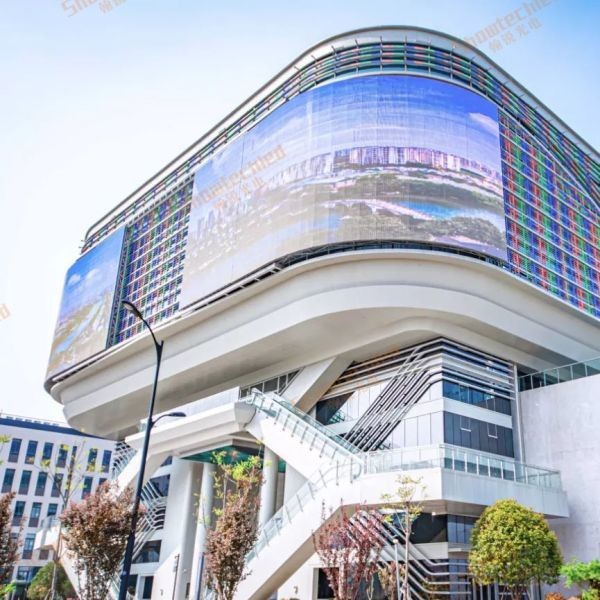

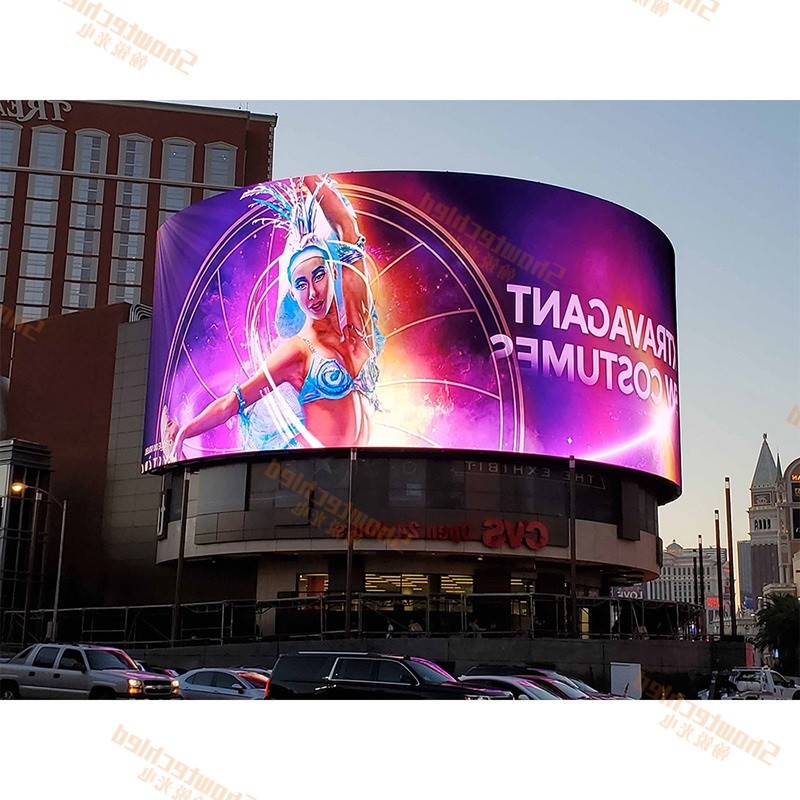

Widely used for outdoor squares, stadiums, hotels, hospitals, schools, shopping malls, supermarkets, etc.
FAQ:
Q1. Can I have a sample order for led display?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What is your delivery time ,Can we receive our goods on time?
A: We offer fast lead time, usally 1-2 days if on stocks , 15-25 days if out of stocks. Please contact us for a accurate delivery date in advance.
Q3. How to proceed an order for led display?
A: Firstly, let us know your requirements or application.
Secondly, We quote according to your requirements or our suggestions.
Thirdly, customer confirms the samples and places deposit for formal order.
Fourth, we arrange production and delivery.
Q4. What is your terms of payment?
A: T/T 40% as deposit, and 60% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q5. Is the product customizable?
A: Yes, we can customize the product according to customers' needs, you just need to provide the requirements details.
